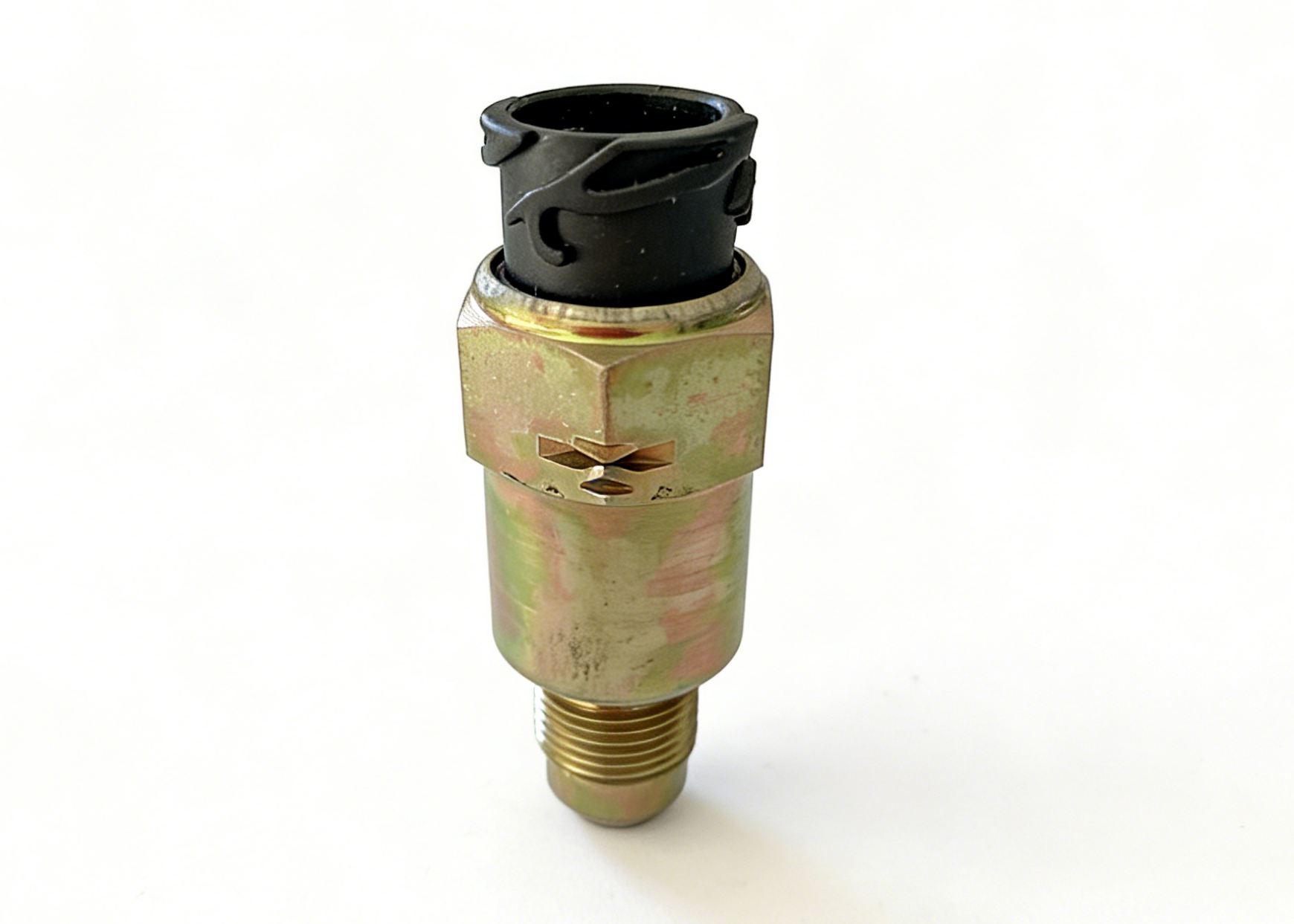

High Stability Vehicle Speed Sensor with Voltage & PWM Output for Speed Monitoring & Dashboard Systems OEM

Model Number : TIA-C03S0501

Place of Origin : China

MOQ : 1000 pieces

Packaging Details : According to size and volume

Delivery Time : generally 2-3 months（Special orders can be processed separately)

Payment Terms : T/T

Supply Ability : 20,000 pieces per month

Certification : IATF16949

Product Name : Vehicle Speed Sensor

Model : TIA‑C03S0501

Measurement Parameter : Vehicle Speed Detection

Material : A3 Steel + 304 Stainless Steel

Operating Temperature : -40℃ to 125℃

Storage Temperature : -40℃ to 140℃

Voltage Supply : 8‑36VDC

Current Consumption : <20mA

Signal Output : Voltage / PWM

Accuracy : Standard Industrial Precision

Application : Speed Monitoring Systems, Dashboard Systems, Transmission Control Systems

Contact Now

High Stability Vehicle Speed Sensor with Voltage & PWM Output for Speed Monitoring & Dashboard Systems OEM

Product Overview

This vehicle speed sensor is used for accurate speed detection in automotive speed monitoring and dashboard systems. It provides dual voltage and PWM signal output for real‑time speed data feedback.

Technical Specifications

Model	TIA-C03S0501
Material	PBT+GF30
Operating Temperature	-40℃ to 125℃
Storage Temperature	-40℃ to 125℃
Operating Voltage	5±0.5V
Operating Current	<20mA
Signal Output	Voltage
Linear Accuracy	±1.5%

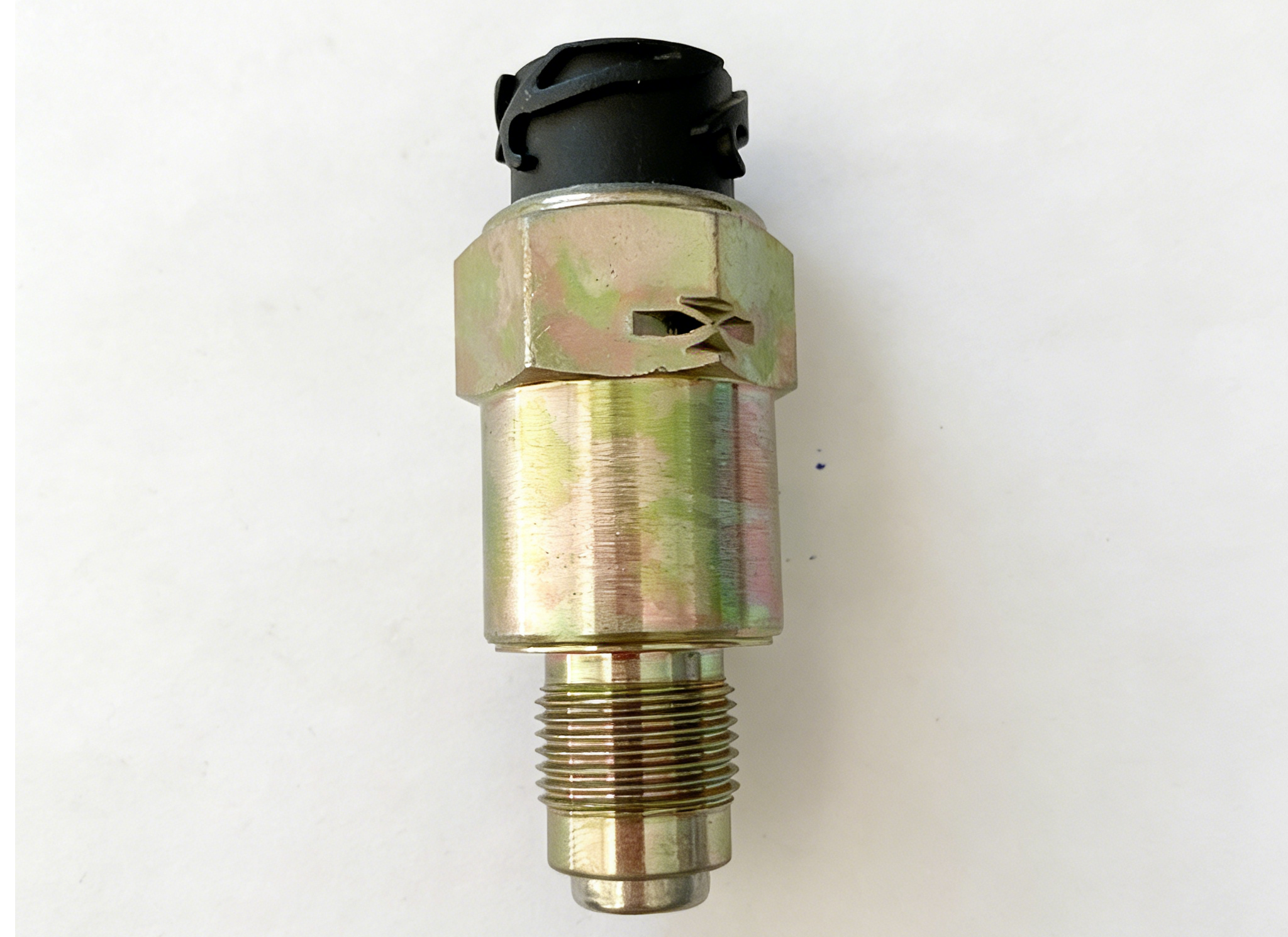

High Stability Vehicle Speed Sensor with Voltage & PWM Output for Speed Monitoring & Dashboard Systems OEM

Problem

Speed signal failure occurs in harsh environments. Conventional sensors have limited power supply compatibility and poor durability, affecting speed monitoring accuracy.

Cause

Weak material structure reduces reliability. Single signal output limits compatibility. Narrow voltage range restricts application. High power consumption affects system stability.

Solution

This sensor adopts A3 steel + 304 stainless steel structure for high durability. It supports dual voltage & PWM output, 8‑36VDC wide voltage supply, -40℃~125℃ temperature range and <20mA low power consumption for stable speed detection.

How It Works

The sensor detects wheel or transmission speed changes, converts mechanical speed into electrical signals, and outputs voltage or PWM signals to the dashboard for real‑time speed display.

Applications

Speed Monitoring Systems
Dashboard Systems
Transmission Control Systems
OEM Automotive Speed Detection Assembly

Key Advantages

Wide Voltage Supply (8‑36VDC) → Compatible with various automotive power systems

Wide Temperature Range (-40℃ to 125℃) → Suitable for extreme driving environments

Dual Signal Output (Voltage & PWM) → Ensures stable speed data transmission

Steel + Stainless Steel Structure → Improves durability and corrosion resistance

Low Power Consumption (<20mA) → Supports long‑term speed monitoring operation

How To Choose

For speed monitoring: Dual voltage/PWM output is recommended

For commercial vehicles: 8‑36VDC wide voltage is required

For harsh environments: Metal structure is preferred

For OEM projects: Bulk customization is supported

FAQ

Q: What is the minimum order quantity?

A: Standard MOQ is 1000 pcs.

Q: Is this product for individual use?

A: Mainly for automotive OEM and bulk applications.

Q: Can you customize the sensor?

A: Yes, we support interface and signal customization.
